Products: heco

THROUGHBOLT

Description:

M2 Throughbolt and m2r Throughbolt stainless steel A4/316.

Specification:

• European Technical Approval
• Option 7 for uncracked concrete
• Special design of the clip in stainless steel gives a guaranteed hold
• Torque controlled expansion
• Zinc plated > 5 microns
• M6 - M20
• Pre installation or through fixing

Application:

Railings, steel constructions, machines, facade substructures, high-racks, cable trays.

ANCHORS

Description:

MSS Shield Anchor, ESA Drop In Anchor, MAN Ceiling Anchor.

Specification:

Shield Anchor: Torque controlled expansion, zinc plated > 5microns M6 - M12. Pre installation or through fixing. Length: 12mm ~ 160mm, Box qty: 100 ~ 200.

Drop in Anchor: Low edge and anchor distances, small drilling depth, internal thread, Zinc plated > 5microns. M6 - M20. Also available stainless steel. Pre installation.

Ceiling Anchor: Certified for multiple fixings of light weight suspended ceilings according to DIN 18168, also in cracked concrete. Fire resistance test cert. F30-F120. Can be used for overhead fixings, Zinc plated > 5microns. M6 x 40, M6 x 70. Through fixing.

Application:

Please refer to Mungo product guide for specific application data – this is available on request.

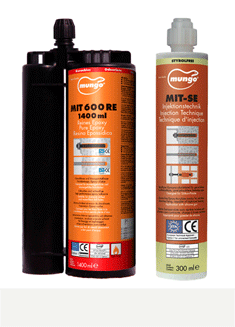

CHEMICAL PRODUCTS

Description:

MIT600RE Pure Epoxy, MIT-SE Plus Vinylester mortar, styrene free.

Specification:

Pure Epoxy: ETA Option 1 for uncracked and cracked concrete with anchor rod and rebar. Fire resistance test cert. F30-F120, suitable for diamond drilled holes, application in damp and water filled drill holes, high loadings. Colour of mortar: grey.

Vinylester mortar, styrene free: ETA Option 7 for uncracked concrete with anchor rod and rebar.German National Approval for masonry, Fire resistance test cert. F30-F120, Universal mortar for highest loads in almost all building materials, application in damp and water filled drill holes. Colour of mortar: grey.

Application:

Pure Epoxy: reinforcing steel, steel constructions, profiles, closing of ceiling, repair work, structural connections. Vinylester mortar, styrene free: steel and wooden constructions, facades, railings, high-racks, reinforcing steel, staircases, ladders, cable trays.

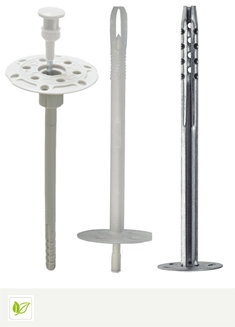

INSULATION FIXINGS

Description:

MDD-S Thermo Universal Anchor, MDD Insulation Fixing, plastic nail, MIDS Insulation Nail.

Specification:

Thermo Universal Anchor: Examined according to ÖNORM B6124 and fulfils all requirements for the use in categories A, B and C. Special head prevents heat losses and protects the nail against penetrating humidity. Through fixing.

Insulation Fixing, plastic nail: With glass fibre reinforced plastic pin, resistant to cold and heat. Do NOT use for overhead fixings. Through fixing.

Insulation Nail: MIDS: Fire resistance test cert. F120, Cap reduces cooling/warming transmission. In combination with MDB discs for soft insulating material. Stainless steel available. Through fixing.

Application:

Please refer to Mungo product guide for specific application data – this is available on request.

PLASTERBOARD FIXINGS

Description:

MJP Jet Plug metal, MHD Cavity Wall Anchor..

Specification:

Jet Plug: Thin cutting thread, centre point, 25mm, 32mm, 39mm Available with or without pan head screw.

Cavity Wall Anchor: Quick and simple installation with setting tool, increased load bearing capability and security. Through fixing.

Application:

Lamps, pictures, rails, small wall mounted shelves.

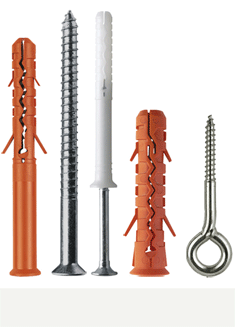

NYLON PRODUCTS

Description:

MBR Nylon Frame Plug, MNA Hammer Screw, MGD Scaffold Plug.

Specification:

Nylon Frame Plug for solid materials: Fire resistance test certification F90. Stainless steel also available for outdoor applications. Plug made from high quality polyamide PA6. Through Fixing.

Hammer Screw: Stainless steel also available for outdoor applications. Three different head styles available – countersunk, cylindrical and big. Plug made from high quality polyamide PA6. Through Fixing.

Scaffold Plug: Economical solution for light scaffolds. Corresponding DIN 4420. Tension force 26kN (DIN EN 10002-1: 1991-04). Setting depth marks for correct installation. Plug made from high quality polyamide PA6. Pre Installation. MGV Scaffold screw to suit also available.

Application:

Please refer to Mungo product guide for specific application data – this is available on request.
